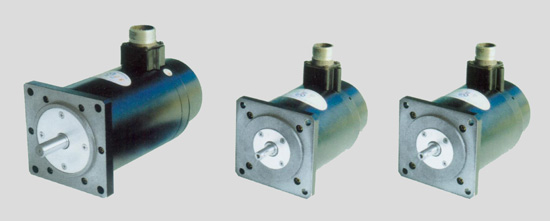

反應式/磁阻式步進電動機
- 反應式/磁阻式步進電機·90，110BF/90，110BC
- 咨詢熱線：18921077653
- 分享到：
- 立即咨詢
產品詳細內容
技術參數
| 型號 | 相數 | 步距角
(DGE.) | 電壓
(V) | 電流
(A) | 保持轉矩
(kg.cm) | 空載啟動頻率
(HZ) | 運行頻率
(HZ) | 接線圖 | 備注 |
| 90BF003 | 3 | 1.5°/3° | 60 | 5 | 1.96(20) | 1500 | 8000 | 1 | |
| 90BF340 | 3 | 1.5°/3° | 30 | 4 | 2.45(25) | 1000 | | 1 | |
| 90BF006 | 5 | 0.36°/0.72° | 24 | 3 | 2.156(22) | 2400 | | 3 | |
| 90BF006B | 5 | 0.36°/0.72° | 36 | 3 | 3.58(36) | 2400 | | 3 | |
| 95BC340A | 3 | 1.5°/3° | 60-110 | 6 | 3.92(40) | 1500 | 8000 | 5 | |
| 110BC3100 | 3 | 0.6°/1.2° | 80-300 | 6 | 9.8(100) | 1500 | 15000 | 5 | |
| 110BC3100A | 3 | 0.6°/1.2° | 80-300 | 6 | 11.76(120) | 1500 | 12000 | 5 | |
| 110BF003(新) | 3 | 0.75°/1.5° | 80-300 | 6 | 7.84(80) | 1400 | 15000 | 5 | |
| 110BF004 | 3 | 0.75°/1.5° | 30 | 4 | 4.9(50) | 500 | | 1 | |
| 110BC380B | 3 | 0.75°/1.5° | 80-300 | 6 | 9.8(100) | 1350 | 15000 | 5 | |
| 110BC380C | 5 | 0.75°/1.5° | 80-300 | 6 | 9.8(100) | 1350 | 15000 | 5 | |
| 110BC380F | 3 | 0.75°/1.5° | 80-300 | 6 | 11.76(120) | 1200 | 15000 | 5 | |

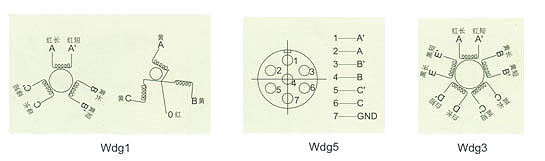

接線圖

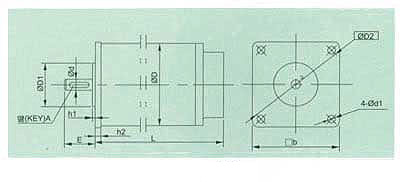

外形圖
外形安裝尺寸
| 型號 | ΦD | ΦD1 | □b | E | Φd | Φd1 | L | h1 | h2 | Φd2 | 鍵A | 備注 |
| 90BF003 | 90 | | 92 | 27 | | 6.6 | 145 | 3 | 6 | 107 | 半圓鍵3×10 | |
| 90BF340 | 90 | | 92 | 25 | | 6.6 | 75 | 3 | 6 | 107 | 半圓鍵3×10 | |
| 90BF006 | 90 | | 92 | 25 | | 6.6 | 65 | 3 | 6 | 107 | 半圓鍵3×10 | |
| 90BF006B | 90 | | 92 | 25 | | 6.6 | 78 | 3 | 6 | 107 | 半圓鍵3×10 | |
| 95BC340A | 95 | | 96 | 27 | | 6.6 | 165 | 2 | 6 | 107 | 平鍵4×20 | |
| 110BC3100 | 110 | | 112 | 35 | | 9 | 186 | 4 | 8 | 132 | | |
| 110BC3100A | 110 | | 112 | 35 | | 9 | 206 | 4 | 8 | 132 | | |
| 110BF003(新) | 110 | | 112 | 29 | | 9 | 186 | 4 | 8 | 132 | 平鍵4×20 |
|
| 110BF004 | 110 | | 112 | 27 | | 9 | 111 | 4 | 8 | 132 | 平鍵4×20 | |
| 110BC380B | 110 | | 112 | 29 | | 9 | 206 | 4 | 8 | 132 | 平鍵4×20 | |
| 110BC380C | 110 | | 112 | 35 | | 9 | 206 | 4 | 8 | 132 | | |
| 110BC380F | 110 | | 112 | 35 | | 9 | 226 | 4 | 8 | 132 | 平鍵4×20 | |

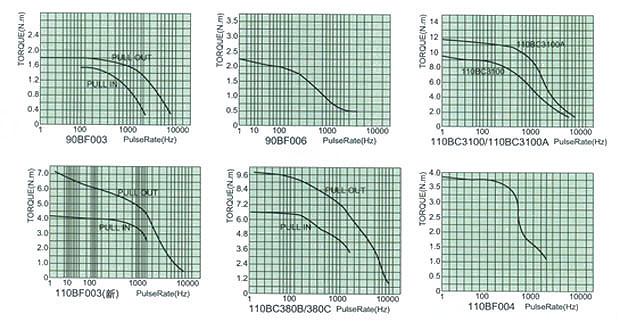

矩頻特性
